Sprinkler Irrigation

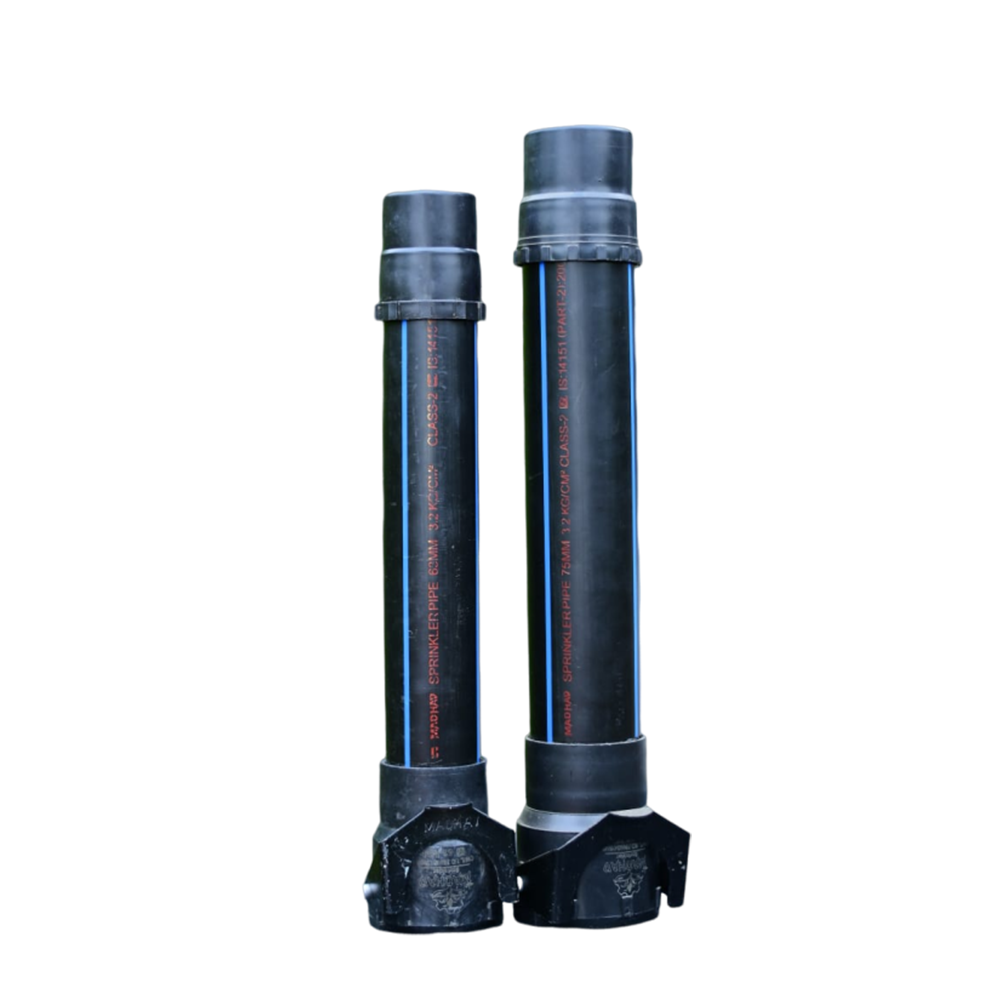

SPRINKLER PIPE
SPRINKLER PIPE
Type Size Thickness Pressure Lenth Class
C-Clamp 63 mm 2.4mm 3.2 kg 6 mtr. Class 2 ISI
C-Clamp 75 mm 2.4mm & 2.9mm 3.2 kg 6 mtr. Class 2 ISI
C-Clamp 90 mm 2.6mm 3.2 kg 6 mtr. Class 2 ISI
 SPRINKLER NOZZAL
SPRINKLER NOZZAL
Connection Size Pressure Radius (Mtr) Discharge - -
¾” 2 Kg/cm2 12.6 32 Lpm - -

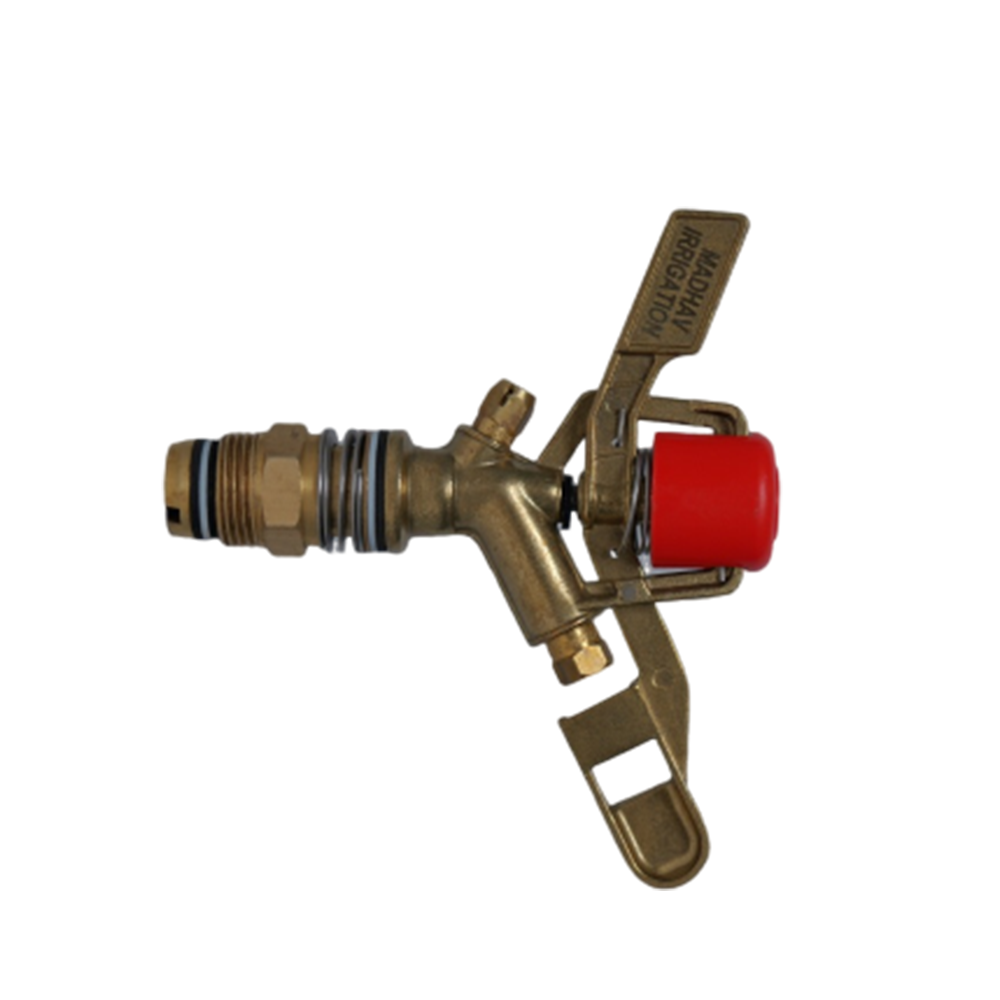

Red Cap for Defence A fully closed plastic protection cap shields the spring from sand, frost extends the sprinkler's life, and the sprinkler can operate in an area covered in frosting.

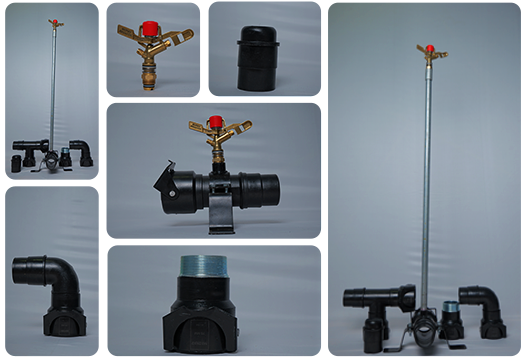

 SPRINKLER ACCESORIES
SPRINKLER ACCESORIES
SPRINKLER ACCESORIES Sprinkler Set 75 MM & 63 MM Riser Pipe ,Pcn , End Cap, Rubber Ring, Foot Batton, Tee, Bend’s Etc. are available

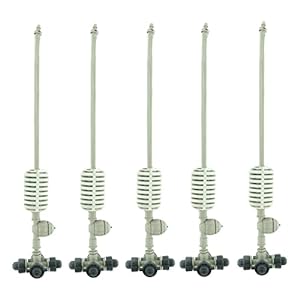

FOGGERS
Type 4 Way - - -
Pattern 3600 - - -
Operatig Pressure 4 K.g - - -
Flow Rate (Lph) 30 - - -
  • Lowers the temperature in the greenhouse.
  • Raises the humidity in a greenhouse.
  • Creates ideal conditions for the growth of plants.
  • The T assembly's fogger is used to apply pesticides.
 SPRINKLER ACCESORIES

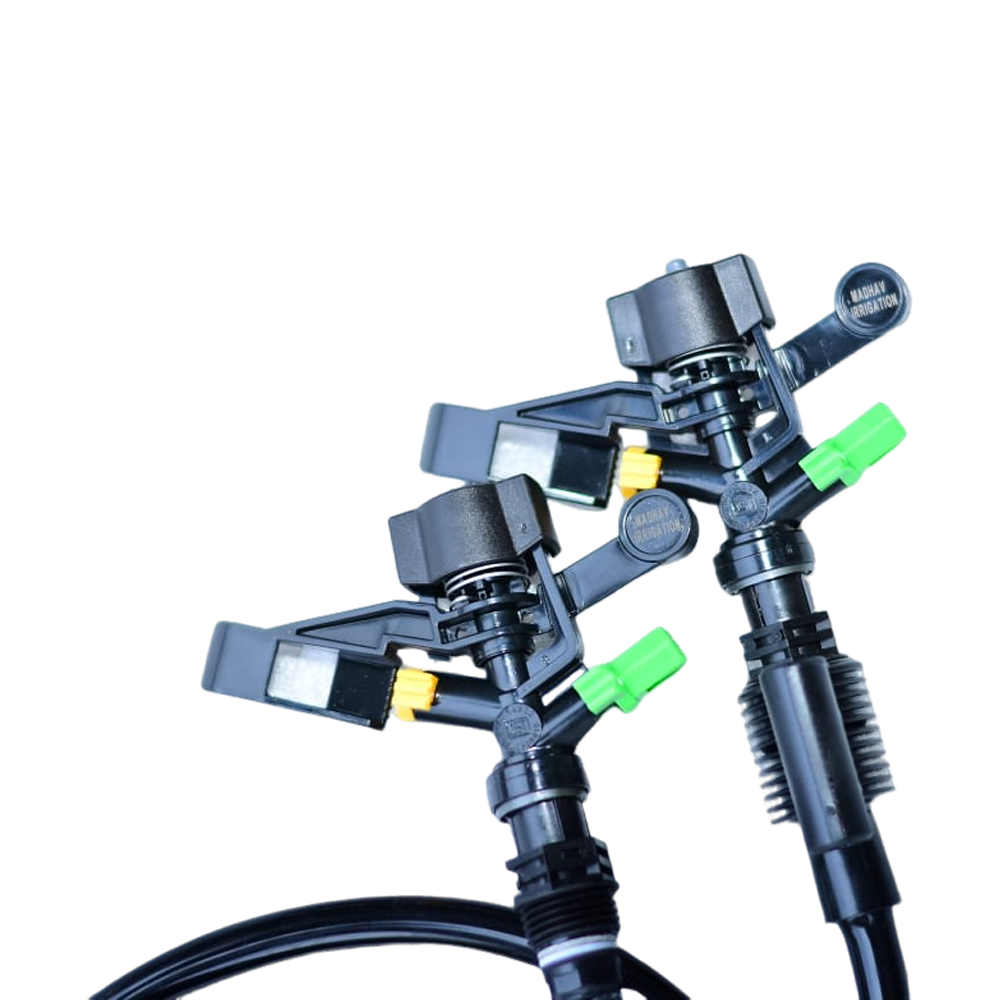

MINI SPRINKLERS
Nozzle (mm) Pressure (kg/cm2 ) Radius (mtr.) Discharge
(ltr/min)/(m3/hr.)
*2.5 X 1.8 2 10.2 8.73/0.52
2.5 10.3 9.6 0.58
3 10.5 10.6 0.64
3.5 10.7 11.3 0.68
4 10.7 12.1 0.73

Mini sprinklers are made to meet the demands of modern, cost-effective irrigation systems for a wide range of general field applications. They are semi-portable and portable, and they come with a robust set of systems. With a sophisticated design that has been put to the test in the field and the use of materials that are incredibly resistant to corrosion, they guarantee fall safety and a long lifespan that requires little maintenance. Madhav is an Indian manufacturer of overhead sprinklers, with dealers spread throughout the country. The company's product line includes overhead sprinklers with small, low-flow nozzle sizes and large, high-flow nozzle sizes.
